abm Bluetooth

Wireless RS-232 to Bluetooth Converter

In its simplest use it can be thought of as a RS-232 to wireless Bluetooth converter. Since RS-232 ports are considered a legacy item in most PC’s and  laptops a converter is needed to connect a computer to an ajet printer. Using this accessory you have the convenience of it being wireless.

Even if you have access to a PC or laptop some customers object to having computer on the factory floor. Many have used a handheld in this case but a handheld terminal (sometimes called a KID) has a small LCD screen and a limited keypad. These limitations can cause difficulties, frustration and errors. With the Bluetooth accessory the user can program an ajet printer using a computer with a full screen and keyboard and the computer doesn’t have to be in the factory.

To connect the ajet printer to your PC first install an inexpensive Bluetooth dongle into a USB port.  After the computer installs the drivers insert the Bluetooth adaptor into the ajet and ask the computer to find it.  After it does so enter the passcode 1234.  Windows will likely assign several COM ports only one of which works as a serial port.  Use a terminal emulator such as Tera Term and try each.  After it connects you can use it just as if you had a cable connection to the ajet.

Besides connecting the ajet to a computer with the Bluetooth adaptor you could opt to connect to an Android tablet.  This has the portability a handheld terminal but a much better screen.

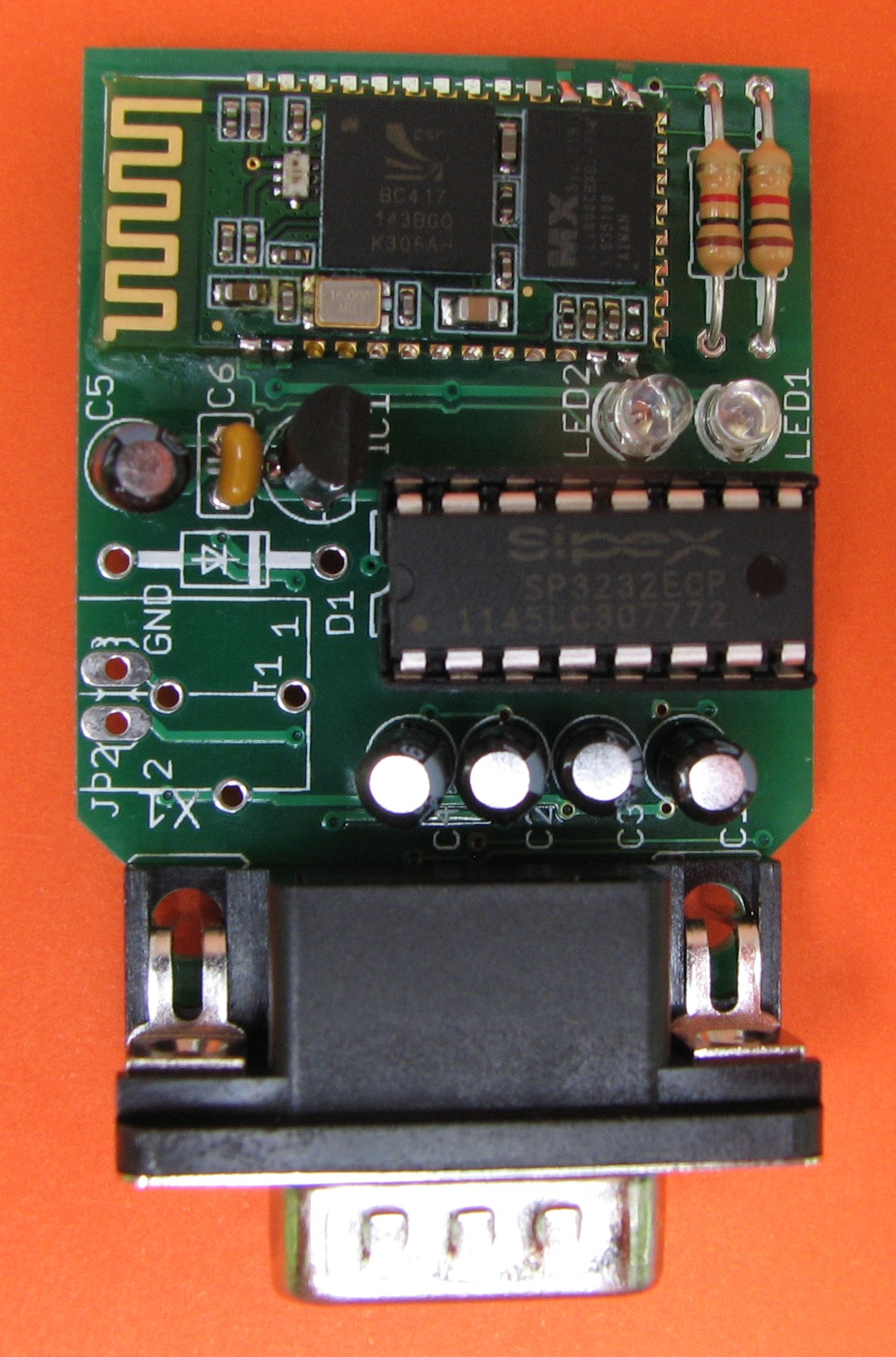

Click for a large view of photo Using the Wireless RS-232 to Bluetooth Converter with other devices

The abm Bluetooth converter can be used with other devices that have RS-232 jacks.

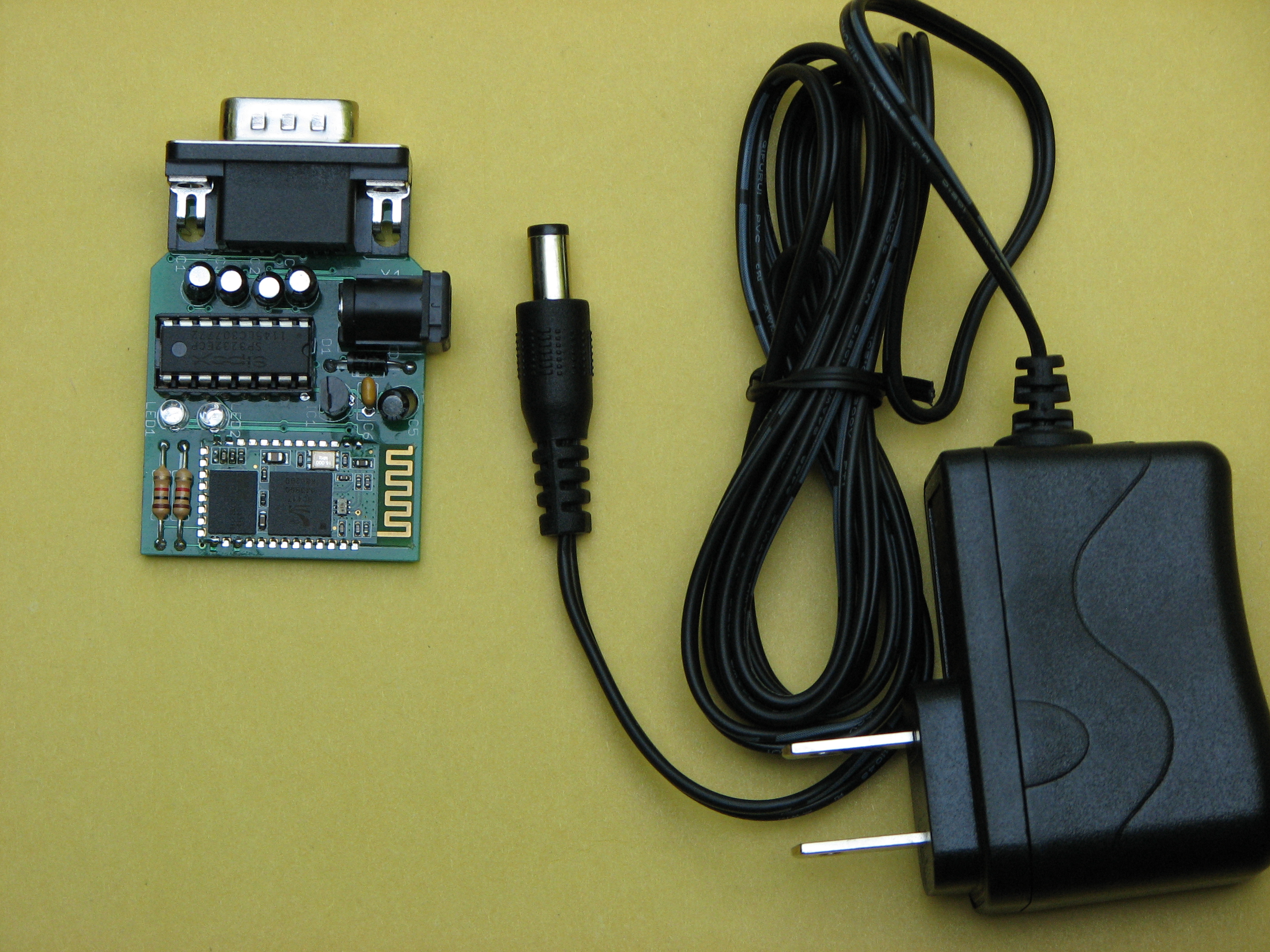

The ajet printer has +5 volts available on pin 9 of the jack which is used to power the converter.  With other devices the converter can be fitted with a barrel jack for use with a common wall mount power supply.  Click on the photo to the left for a close up view.

Also consider the abm wireless XBee adaptor.  Here is a comparison of wireless adaptors.

Return to abm marking

abm marking ltd
2799 South Belt West
Belleville, IL 62226 USA

Phone: (618) 277-3773
Fax: (618) 277-3782

sales@abmmarking.com

This page written by Roger Schaefer
Updated July, 2013
