Tape Dispensers

abm marking ltd. offers:
Electronic Dispensers for Pressure Sensitive tapes
Electronic Gummed Tape Dispenser C-25
Manual Gummed Tape Dispensers  CMT-102

abm electronic dispensers for Pressure Sensitive tapes

Baby 75

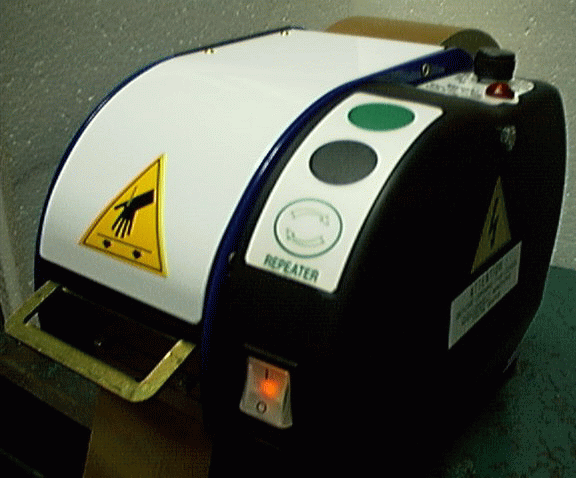

Side view of machine with 3" wide paper tape - The dispensed length remains in the machine until the operator takes it cutting it against the stationary blade. FUNCTIONS Preset length from 2" to 52" Random measure from 2" to infinite Repeat mode: length shown on dial is repeated automatically as the one dispensed is cut off.

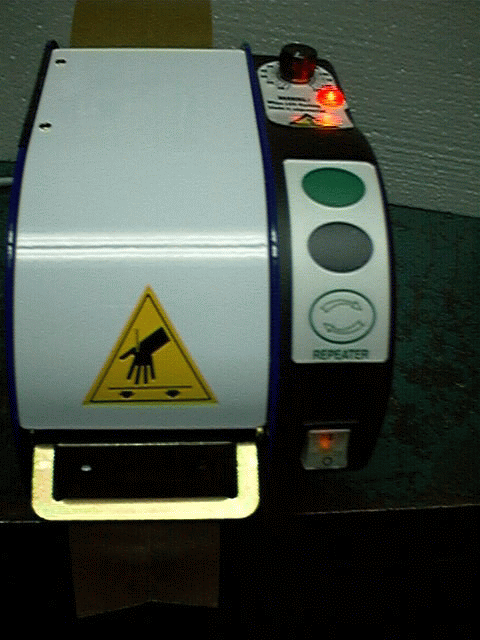

Front view showing red light electronic safety. Red light flashes when blade is unlocked and ready to cut. The safety can be programmed from 10 to 60 seconds (factory setting) The BABY 75 cuts when the tape strip is lifted against the stationary blade.  Blade guard is locked after cutting, to prevent accidental injury to operator. SPECIFICATIONS Dimensions: 6.1"x10.6"x8" approx. Weight: 13.2 lbs Roll capacity: OD 7.4" - ID 3" 1"- 1.25" - 1.5" optional Tape width: 3" max. ½" min. Power supply: 110V/60Hz SUGGESTED PRICE Baby 75 - Standard $ 965.00 Baby 75 - Teflon coated $1,095.00

SAE-23

Designed to provide dependable continuous performance in demanding environments. Comes with lid cover to protect from dust. This machine will dispense definite length strips from any roll material with one side of self adhesive coating up to 4 inches width. A solid state electronic timer determines the length of the strip. Consistency of length is within 1/4" within the entire measuring range.

Standard Range:  SAE 23 ST 21/2" to 52" Shorter Lengths Range:  SAE 23 SH 1 3/16" to 19" Operations: Push button control for random (green) and selected (black) length Dial Selector with 3" to 52" marks (7.5 to 130 cm). Auto Mode for random (green) and selected (black) length Dial Selector with 3" to 52" marks (7.5 to 130 cm) Motor:  120-60 Hz .08 KW Exit Speed:  57 ft./m (17.38 m/m) Roll Capacity: Width: With central setting of pressure orange wheel 3/4" to 4". Narrower width may be used depending on the backing of the tape and changing the position of the traction wheel. For special applications, pressure wheel can be replaced with flat non scoring type. Length: The standard unit will accept a 1,000 yards roll of 1, 8/2 mil material. Clearance may be increased by inserting spacers under roll holder shaft to accommodate large rolls (over 10" diameter). Roll Holder:  3" & 1 1/2" Dimensions:  9 x 16 x 9 1/2 (w x l x h) Weight:  23 lbs. Available Options: -Teflon coated rollers for high adhesive mass tape -Custom core sizes -Soft pressure wheels -Oversize roll extension -Antistatic Bars

Return to top

Electronic Gummed Tape Dispenser

Cyklop's electronic gummed tape dispensing machine make carton sealing easier than ever before. Easily programmed with the tape lengths you select, Cyklop dispensers take the guess work out of carton sealing. They make packaging easier, provide labor savings and make for a neater carton.

Superior glue activation is the key to a more secure, better looking package. The C-25's  top heater warms the brush tip, water and tape as the tape is fed. Thorough, uniform moistening, for the longest of shortest tape length, assures a perfectly sealed carton.
Precise feed length measurement using the C-25's new electronic length control system provides the exact tape length selected for efficient tape utilization and a smart looking package.

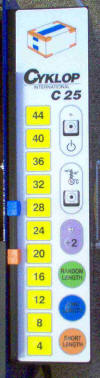

Convenient and easy to clean keypad controls provide easy operator access, reducing labor and maximizing output.
Large capacity water tank eliminates the need for frequent refilling.
Tape feed rates of 30 inches of tape per second can keep two operators busy
Corrosion resistant materials provide years of dependable service.
Handles any gummed tape 1" to 4" wide and cuts lengths from 4" to 44"
Front loading design eliminates need for moving or providing rear access to dispensers even when changing tape rolls.

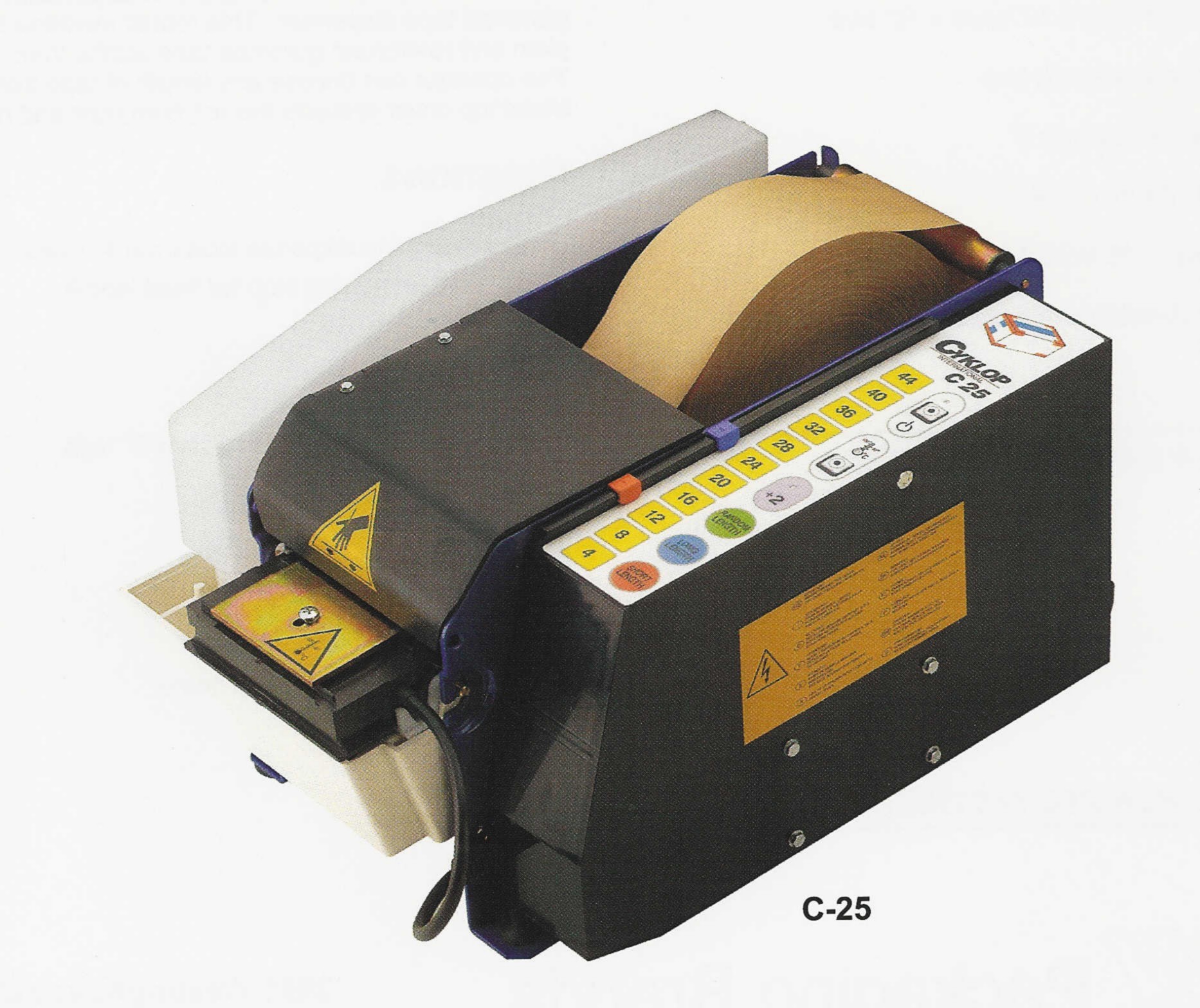

C-25 ELECTRONIC TAPE DISPENSER

The C-25 is a great choice for electronic tape dispensers, whether you have identical box sizes, or they change constantly.  This compact machine handles plain or reinforced gummed tape from 1" to 4" wide.  It is designed for continuous operation.  The motor, heater and control circuits all operate on 24 Volts DC.  The soft touch keyboard is waterproof.  This dispenser is covered by a 2-year warranty.

FUNCTIONS:


Return to top

Manual Gummed Tape Dispensers

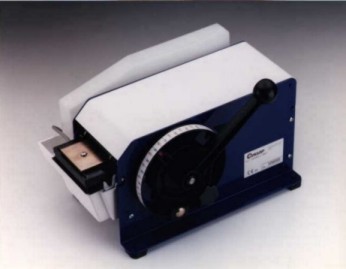

CMT-102

Designed for the low volume user - up to 50 cartons per day - the CMT-102 is equipped with two scales for pre-selected long and short tape lengths. Tape of selected length is dispensed, moistened and cut by means of a simple hand lever.

The double moistening brush with variable water level and pressure plate guarantees optimal tape moistening for secure carton sealing. A large capacity water tank eliminates the need for frequent refilling. Possibly the longest single lever stroke tape dispensing in the industry - up to 42" - repeated lever strokes can provide even longer lengths.

The optimal HC100 heater kit is available for field addition to provide more efficient glue activation even in cool packing and shipping area environments. This type of heater is standard on all electronic models.

CYKLOP GUMMED TAPE DISPENSERS

DESCRIPTION	STOCK NO.
CMT-102 MANUAL	TD-CMT-102
C-24 ELECTRONIC	TD-C-24
P110 TAPE MACHINE CODER	TD-CODER
BLACK INKING ROLLER	TD-BK-IR
RED INKING ROLLER	TD-R-IR
BLUE INKING ROLLER	TD-BL-IR
GREEN INKING ROLLER	TD-G-IR
VIOLET INKINING ROLLER	TD-V-IR
