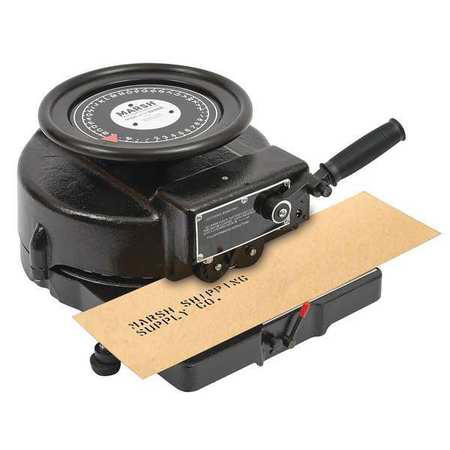

Marsh Hand Operated Stencil Machines

Combine the stencil machine along with the superb quality Oilboard, inks, and applications, and you can be sure you have a “system” that will meet your coding needs.

Hand Operated Stencil Machines

18 month limited warranty

MODELS

SIZE CUT

LINES

NET WT.

GROSS WT.

R

1"
25 mm

4

64 lbs.
30 kilos

71 lbs.
34 kilos



R-5

1"
25 mm

5

64 lbs.
30 kilos

              71 lbs.
               34 kilos

S

3/4"
19 mm

4

47 lbs.
30 kilos

53 lbs.
24 kilos

H

1/2"
13 mm

6

47 lbs.
21 kilos

53 lbs.
24 kilos

Q

1/4"
6.5 mm

10

47 lbs.
21 kilos

53 lbs.
24 kilos

Dimensions:

26" long x 20" high x 13" wide

(66.7 cm long x 51.3 cm high x 33.3 cm wide


QUALITY STENCIL FEATURES INCLUDE:
•Punch and Die
Case hardened dies have wear-proof cutting edges.  Alloy punch is stronger, lasts longer than steel.  Fits closer, cuts cleaner, is more corrosion resistant.
Aluminum Rotating Parts
Lightweight for faster, smoother operation.
Clean Hand Wheel
No Spokes or lugs to interfere with hand.
Durable Finish
Baked on powder coat industrial blue finish.
•Sealed-In Lubrication
Parts rotating on center spindle “ride on oil” from impregnated felt ring in base of machine
•Large Dial
Easy to read
•Word Space Button and Release Lever and Button
For quicker, neater, easier stencil cutting.
•Accurate Spacing
Simple cam and ratchet spaces automatically
•Quick, Shock-Free Centering
Makes character selection smoother and easier.
•Rubber Base Mounts
Smooth, soft feel to cutting operation.
•Lubricated Punch Shanks
Felt rings impregnated with oil, on all 40 punch Shanks, provide years of self-lubrication and reduce operating sound.

1" & 3/4" Sample

1 " MODEL "R"

Cuts this size stencil

4 lines, any length – 14 characters per foot

3/4" MODEL "S"

Cuts this size stencil

4 lines, any length – 16 characters per foot

1/2" & 1/4" Sample

1/2" MODEL "H"

Cuts this size stencil

6 lines, any length – 23 characters per foot

1/4" MODEL "Q"

Cuts this size stencil

 10 lines, any length – 43 characters per food
