Inkjet Valves

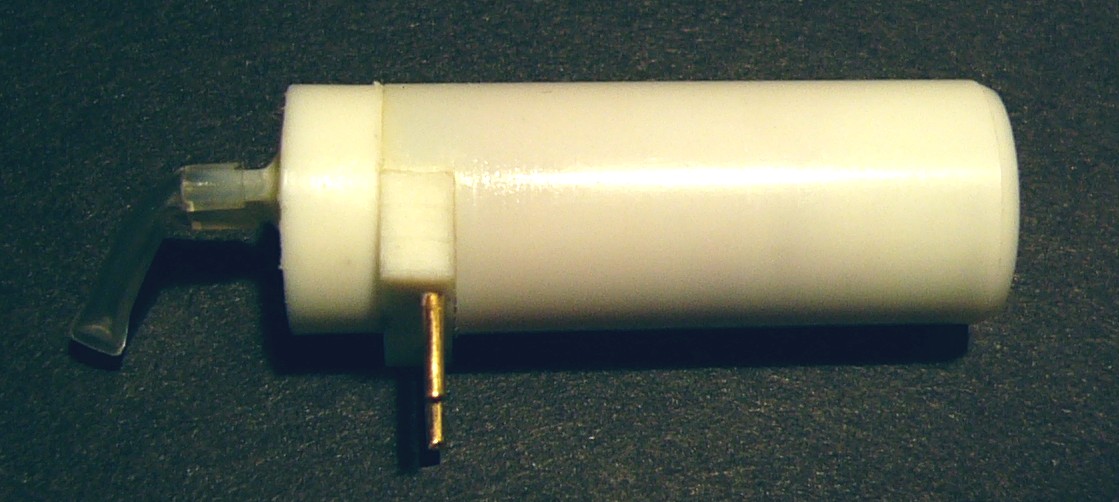

In addition to the Lee Valve originals, we also have equivalent valves at substantially lower prices.  We have had very good experience with these valves and have been using the printed circuit board mount style, Model L, in our printers ajet 101 and ajet 116 since our very beginning and they have shown excellent durability. Model L Model L Inkjet Valve
Little David Microjet™ and ajet 101
Model MR
Max Frequency
Style
Print voltage
Purge voltage
Power
Coil Resistance
Inductance
Current
Materials




Replacement models
Literature
460 Hertz
Leads with P605 connector
Min 36 Volts DC  -  Max 40 Volts DC
12 Volts DC
100 mW
144 ohms
220 mH
120 mA
Housing: GE Valox 830
Valve Seal: Dow Corning Silastic E
Armature: Stainless steel 430F
Spring: Stainless steel 17-7
Marsh INKX0561650AA
Lee  INKA40032456D

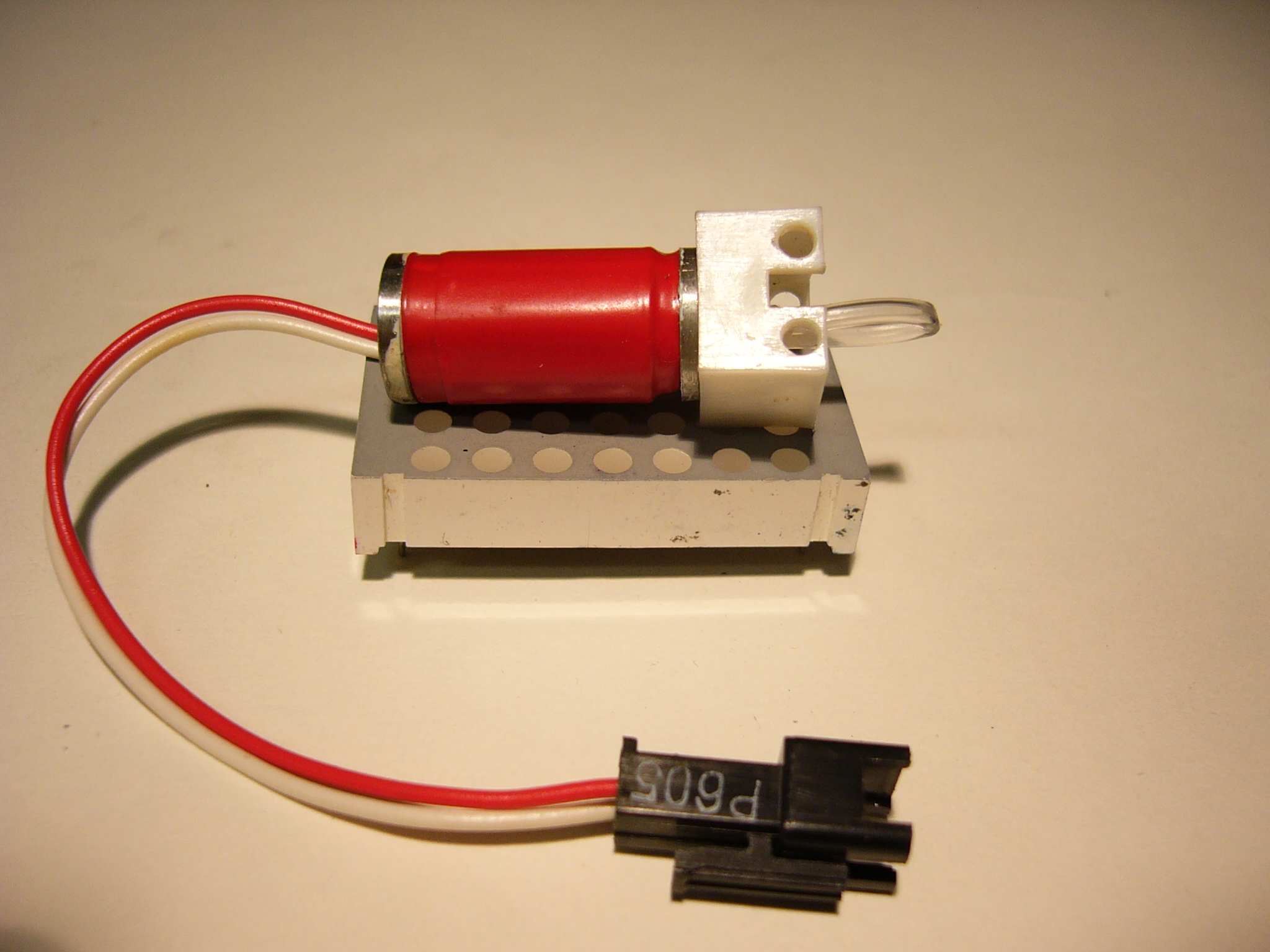

460 Hz Ink Jet Valve
Model MR
460 Hertz Inkjet Valve

abm marking ltd

2799 South Belt West
Belleville, IL 62226

Voice:618-277-3773
      800-626-9012
FAX:  618-277-3782

Written September 2004 by Roger Schaefer
Modified
September, 2007
